Waterproof and Weatherproof IP 42, IP52, IP67, and IP68 Power Supplies

Waterproof connectors for IP68 application

Waterproof and weather proof offering from GlobTek spans all IP ratings from IPx0 through IP67 and IP68 providing the most complete IP rated product offering in the power supply industry

GlobTek offers one of the most complete Water proof and weather proof power supply offering in the industry. With some models offered with an optional IPx2 (IP42 / IP52), IPx3 (IP43/IP53), IPx4 (IP44/IP54) and some models specifically designed for IP67 and IP 68 ratings GlobTek can provide a solution to any application requiring Ingress protection.

Ingress protected Waterproof and weatherproof solutions are internationally certified to IEC/UL/EN 60950-1 (ITE), 60601-1 (Medical), 60335 (Household use), 61558 (Transformers), EN50155 (Trains Railway), Class 2 (UL 1310), and EN 60079-18 (Explosive atmospheres). Most models also comply with IEC 60068-2-52 (68-2-52) Severity 3 to 6, Salt Mist 7 day test and IEC 60068-2-6, 60068-2-64, 60068-2-27, 60068-2-29 Vibration, Shock, Bump. GlobTek’s potted/encapsulated power supplies provide a solution for most ruggedized and demanding applications.

Popular applications for GlobTek’s waterproof and weather proof series power supplies are Electronic Flush Systems, Automatic Flush Valve, Electronic Sensor Faucets, Electric and Electronic Valves, Lighting and Signage, Instrumentation and metering applications, Emergency Response equipment, and Intelligent battery charging of mobile equipment.

Custom solutions for electrical performance and/or mechanical configurations, housings, colors, connections and otherwise are available upon request. The power supplies can be supplied with customer designated output plugs, many of which are stocked at GlobTek New Jersey USA, Münster Germany, and Suzhou China locations.

GlobTek’s line of waterproof and weatherproof power supplies are produced in GlobTek’s wholly owned ISO9001, ISO13485, and ISO14001 certified facilities in Suzhou China.

The power supplies have certifications by UL (North America), C-Tick (Australia/New Zealand), Iram (Argentina), BSMI (Taiwan), CB (Worldwide), CCC (China), Demko (Europe), eK (Korea), NRCAN (Canada), Spring (Singapore), SIQ (Europe), CU TR/Gost (Russia), South Africa, Singapore (PSB), and UkrSEPRO (Ukraine). They also comply with Canadian Nrcan efficiency requirements as well as FCC/VCC/CE emc requirements.

Made in USA or China option available. Local China to China delivery available upon request.

Weatherproof Power Supply Models

Image모델 이름모델 번호W입력 V Hz에서출력 V 범위Ip ratingDatasheet
GT-81083 Wall Plug-InGT-81083590-264 VAC, 47-63 Hz5 VDCIP41Datasheet
GTM41076 SeriesGTM41076690-264 VAC, 47-63 Hz3 - 24 VDCIP52Datasheet
GT-81088-06VV-x.x-W2GT-81088-06VV-x.x-W26100-240V, 47- 63Hz3-24VDCIP41Datasheet
GT-81088-WWVV-X.X-W2AGT-81088-WWVV-X.X-W2A6100-240V, 47- 63Hz3-24VDCIP41Datasheet
GT-81088-06VV-x.x-W2EGT-81088-06VV-x.x-W2E6100-240V, 47- 63Hz3-24VDCIP41Datasheet
GT-81088-WWVV-X.X-W2UGT-81088-WWVV-X.X-W2U6100-240V, 47- 63Hz3-24VDCIP41Datasheet
GT-81088-06VV-x.x-W2GT-81088-06VV-x.x-W26100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2EGT-81088-06VV-x.x-W2E6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2AGT-81088-06VV-x.x-W2A6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2UGT-81088-06VV-x.x-W2U6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2GT-81088-06VV-x.x-W26100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2EGT-81088-06VV-x.x-W2E6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2AGT-81088-06VV-x.x-W2A6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2UGT-81088-06VV-x.x-W2U6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GTM91128GTM9112812100-240 VAC4.2V, 8.4V, or 12.6VIP54Datasheet
GT-81085GT-810851590-264 VAC5-24 VDCIP41Datasheet

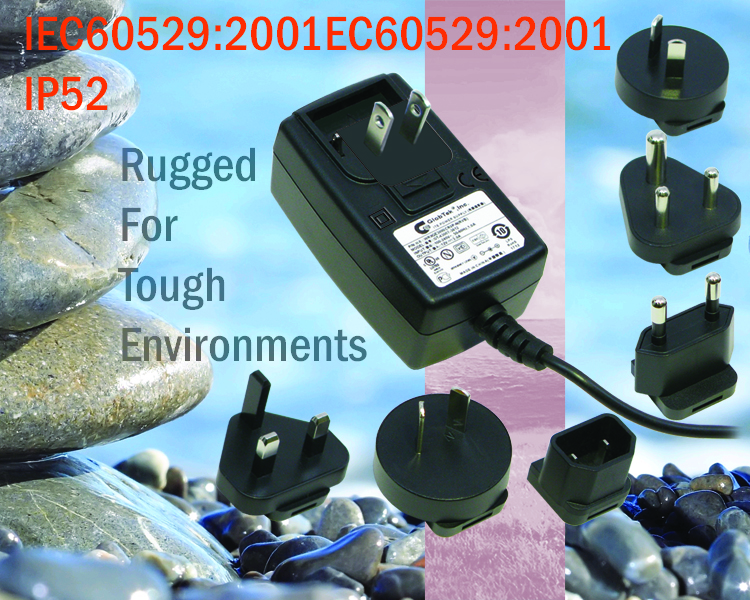

GT-41052 Changeable BladesGT-410521590-264 VAC, 47-63 Hz5-24 VDC +48IP52Datasheet
GT-21089-XY-W2 (W3E,W3U,W3A) Wall plug-inGT-21089-XY-W21-1890-264 VAC, 47-63 Hz3-48 VDCIP41Datasheet
GTM21089-XY- T3, T2 GTM21089-XY- T3, T2 1-1890-264 VAC, 47-63 Hz 3-48 VDC IP42Datasheet
GT-81041-YYZZ- X-X-W2 Wall plug-inGT-81041-YYZZ- X-X-W22090-264 VAC 47-63 Hz 3-24 VDCIP41Datasheet
GT-81087-20VV-X.X-W2GT-81087-20VV-X.X-W220100-240 VAC5V-18VDCIP41Datasheet
GT-81087-20VV-X.X-W2EGT-81087-20VV-X.X-W2E20100-240 VAC5V-18VDCIP41Datasheet
GT-81087-20VV-X.X-W2UGT-81087-20VV-X.X-W2EU20100-240 VAC5V-18VDCIP41Datasheet
GTM93021GTM9302120100-240VAC, 47-63 Hz IP68Datasheet
GT-41130GT-411302490-264 VAC, 47-63 Hz10-24IP41Datasheet
GT-41130-2GT-41130-22490-264 VAC, 47-63 Hz10-24IP41Datasheet
GT-41060-XY Changeable Blades GT-41060-XY 2590-264 VAC, 47-63 Hz5-30 VDCIP52Datasheet
GT-41060-XY Changeable BladesGT-41060-XY2590-264 VAC, 47-63 Hz5-30 VDCIP52Datasheet
GT-41131GT-411313090-264 VAC, 47-63 Hz12-48 VDCIP52Datasheet
GTM91120GTM91120-30VV-T23090-264 VAC, 47-63 Hz5-48 VDCIP52Datasheet
GTM91120-P2GTM91120-P23090-264 VAC, 47-63 Hz5-48 VDCIP68Datasheet
GTM91120-P3GTM91120-P33090-264 VAC, 47-63 Hz5-48 VDCIP68Datasheet
GT-43007-XXYYGT-4300740100-240 VAC IP52Datasheet
GTM21097-XYGTM21097-XY1-5090-264 VAC, 47-63 Hz 3-48 VDCIP42Datasheet
GT(M)91099GTM91099-60VV-P26090-264 VAC, 47-63 Hz12-24 VDCIP68Datasheet
GTM91099-60VV-T2-IMGTM91099-60VV-T2-IM6090-264 VAC, 47-63 Hz12-24 VDCIP54Datasheet

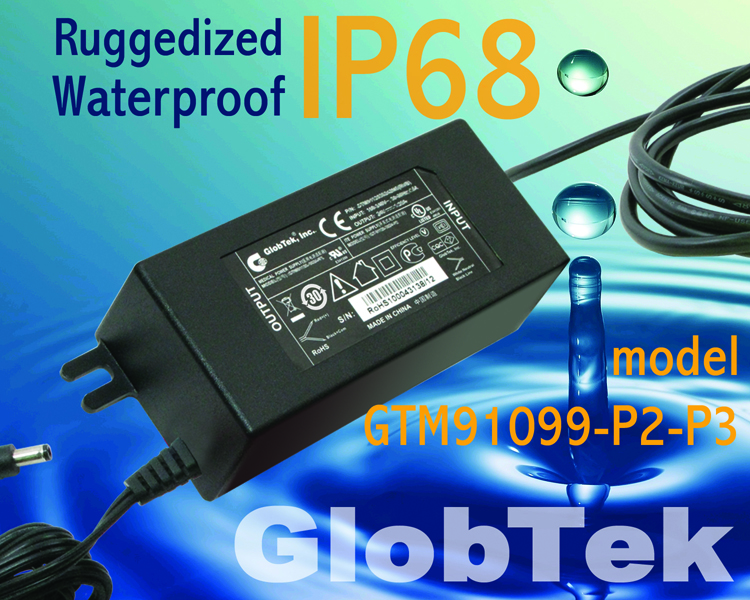

GT(M)91099-P2-P3GT(M)91099-P2-P36090-264 VAC, 47-63 Hz12-24 VDCIP68Datasheet
GTM91099-P2-P3GTM91099-P2-P360100-240 VAC, 47-63 Hz12-24 VDCIP68Datasheet
GT-91099GT-910996090-264 VAC, 47-63 Hz12-24 VDCIP54Datasheet
GTM9100PGTM9100P12090-264 VAC, 47-63 Hz 3-48 VDCIP42Datasheet
GTM43004P120VV-x.x-P2GTM43004P120VV-x.x-P212090- 264 VAC, 47- 63 Hz 5-56IP68Datasheet
GTM43004P120VV-x.x-P3GTM43004P120VV-x.x-P312090- 264 VAC, 47- 63 Hz 5-56IP68Datasheet

Waterproof Power Supplies 제품 뉴스

  • 인라인 전원 공급장치는 두번-시행 절연 기계식 구성을 가지며, 규제 출력 전압은 0.1V 단위로 직류 5V로 부터 48V까지, 최대30W의 지속적인 출력. GlobTek의GT-91120계열의... IP68입구 보호를 충족하는 내장형 전원 공급 장치
  • 인라인 전원 공급 장치는 두번-시행 절연 기계식 구성을 가지며, 규제 출력 전압은: 0.1V 단위로 직류 5V로 부터 48V까지, 최대6W의 지속적인 출력을 보장합니다. IP64 입구 보호6W를 충족하는 인라인 내장형 전원 공급 장치
  • PCB 장착 전원 공급 장치는 두번-시행 절연 기계식 구성을 가지며, 규제 출력 전압은: 0.1V 단위로 직류 5V로 부터 48V까지, 최대6W의 지속적인 출력을 보장합니다. IP64 입구 보호6W를 충족하는 내장형 PCB 장착 전원 공급 장치
  • 이 전원 구성 요소는 많은 국제 안전 기관 요구 사항을 준수하고 있습니다. 설계는 다양한 케이블 유형, 도체 게이지 크기, 종단, 재킷을 다양한 스타일에서... 전원 IEC 320 입구 및 재-배선 가능한 플러그
